Impregnated graphite

Product name: Impregnated graphite

Impregnation is one of the necessary processes for products such as high-density carbon graphite products and graphite electrodes .

Impregnation is a process that forces liquid materials (asphalt, synthetic resin, low melting point metal) to penetrate into the pores of products under certain temperature and pressure. The purpose of impregnation of carbon products is to increase the volume density of products and reduce porosity and permeability, increase the mechanical strength of products and improve electrical and thermal conductivity. Commonly used antimony-impregnated graphite is an excellent solid material with high temperature resistance, wear resistance and self-lubricating properties. It can be used under high temperature of 500 ℃ , deep cooling of -253 ℃ , high speed of 2000 rpm and high pressure of 10MPa. Chemical graphite equipment generally impregnates the processed rough graphite with synthetic resin to achieve the effect of not being penetrated by reactive gases or liquids in the chemical production process .

INQUIRY

Unique physical properties:

Impregnated graphite has excellent properties such as good corrosion resistance, high thermal conductivity, low friction, good self-lubrication, and small expansion . It can be made into sealing rings , bearings, etc. It is an ideal choice for friction fit rings .

Consultation hotline:

+86 18301137796

Category:

Special graphite products

Product indicators:

Technical performance indicators of carbon graphite and metal graphite:

Technical Parameters	unit	M106K	M158K	M 120D	M106P
Impregnation material		Furan resin	Furan resin	antimony	Copper Alloy
Shore hardness	HS	≥90	≥85	≥ 90	85
Body porosity	%	<1.5	<1.5	＜ 1.5	＜3
Bulk density	g/cm2	≥1.70	≥1.75	≥2.30	≥2.48
Compressive strength	MPa	≥240	≥200	≥ 220	≥240
Bending strength	MPa	≥65	≥60	≥6 0	≥70
Operating temperature	℃	200	200	400	400

Chemical corrosion resistance of impregnated carbon graphite for machinery
medium	concentration%	Carbon graphite impregnated alloy material					Carbon graphite impregnated resin material
medium	concentration%	Copper Alloy	Antimony alloy	Aluminum Alloy	Babbitt Alloy	Furan	Epoxy	Phenolic	Polytetrafluoroethylene
sulfuric acid	98	▲	▲	■	▲	●	▲	■	●
sulfuric acid	50	▲	▲	▲	▲	●	■	■	●
Nitric Acid	50	▲	▲	▲	▲	■	▲	▲	●
hydrochloric acid	36	▲	▲	▲	▲	■	■	■	●
Hydrofluoric acid	40	▲	▲	▲	▲	■	▲	■	▲
Phosphoric acid	85	▲	▲	■	▲	●	●	●	●
Chromic acid	10	▲	▲	▲	▲	■	■	■	●
acetic acid	26	■	▲	▲	▲	■	▲	●	●
Sodium hydrofluoride	50	●	▲	▲	▲	●	●	▲	●
Potassium Hydrofluoride	50	●	▲	▲	▲	■	●	▲	●
seawater	-	●	▲	■	●	●	●	■	●
benzene	100	▲	●	●	●	●	■	●	●
ammonia	10	▲	●	●	■	●	●	■	●
Urea	70	▲	●	●	■	●	●	●	●
Carbon tetrachloride	-	●	●	●	●	●	●	●	●
acetone	100	●	●	●	■	●	■	■	●
Engine Oil	-	●	●	●	●	●	●	●	●
gasoline	-	●	●	●	●	●	●	●	●
Note: ● Stable ■ Still stable ▲ Unstable

Keywords ：

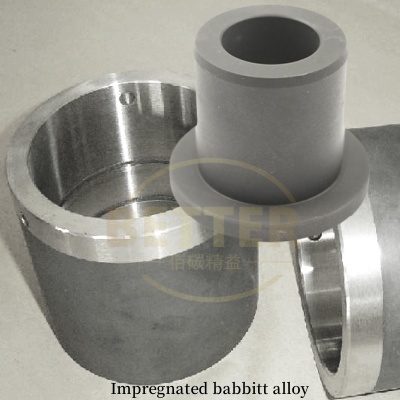

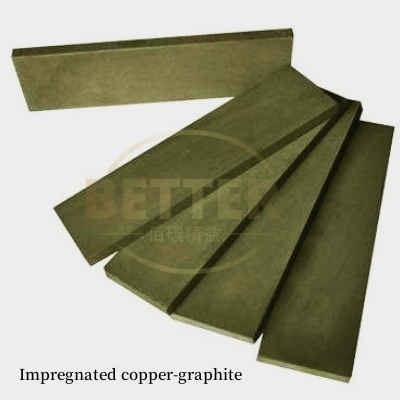

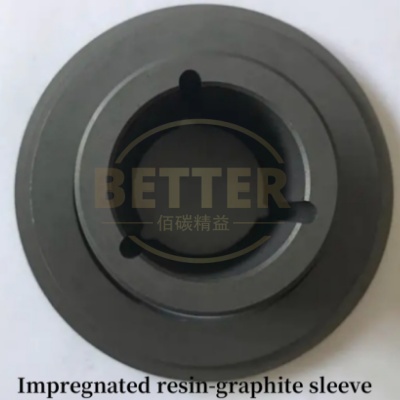

Antimony graphite/copper graphite/impregnated Babbitt alloy graphite/impregnated resin graphite/impregnated graphite rod/graphite ring/graphite bearing/graphite bushing/to figure processing
